构建微服务架构(SpringCloud Alibaba Seata 篇)
原文链接：https://blog.csdn.net/u011863024/article/details/114298270
分布式事务问题由来
分布式前
单机单库没这个问题
从1:1 -> 1:N -> N:N
单体应用被拆分成微服务应用，原来的三个模块被拆分成三个独立的应用,分别使用三个独立的数据源，业务操作需要调用三三 个服务来完成。此时每个服务内部的数据一致性由本地事务来保证， 但是全局的数据一致性问题没法保证。
一句话：一次业务操作需要跨多个数据源或需要跨多个系统进行远程调用，就会产生分布式事务问题。
Seata术语
是什么
Seata是一款开源的分布式事务解决方案，致力于在微服务架构下提供高性能和简单易用的分布式事务服务。
官方网址: http://seata.io/zh-cn/
能干嘛

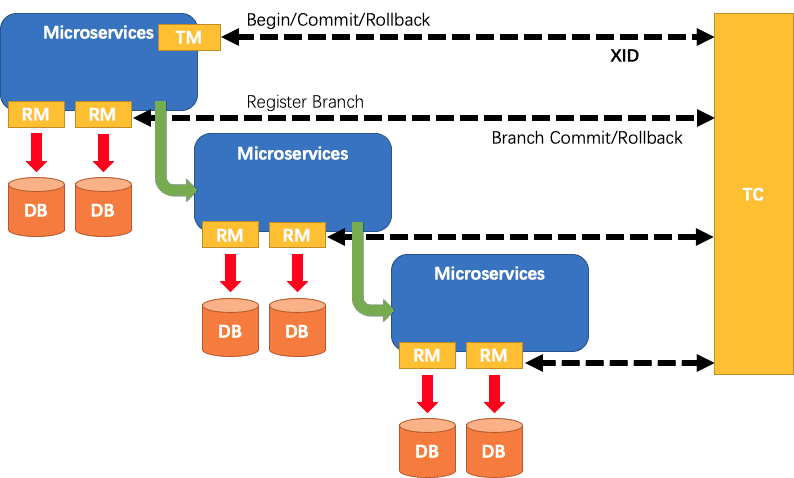

一个典型的分布式事务过程
分布式事务处理过程的一ID+三组件模型：
Transaction ID XID 全局唯一的事务ID
三组件概念
TC (Transaction Coordinator) - 事务协调者：维护全局和分支事务的状态，驱动全局事务提交或回滚。
TM (Transaction Manager) - 事务管理器：定义全局事务的范围：开始全局事务、提交或回滚全局事务。
RM (Resource Manager) - 资源管理器：管理分支事务处理的资源，与TC交谈以注册分支事务和报告分支事务的状态，并驱动分支事务提交或回滚。
处理过程：
1. TM向TC申请开启一个全局事务，全局事务创建成功并生成一个全局唯一的XID；
2. XID在微服务调用链路的上下文中传播；
3. RM向TC注册分支事务，将其纳入XID对应全局事务的管辖；
4. TM向TC发起针对XID的全局提交或回滚决议；
5. TC调度XID下管辖的全部分支事务完成提交或回滚请求。
Seata-Server安装
去哪下
发布说明: https://github.com/seata/seata/releases
怎么玩
本地@Transactional
全局@GlobalTransactional
SEATA 的分布式交易解决方案
我们只需要使用一个 @GlobalTransactional 注解在业务方法上:
Seata-Server安装
官网地址 - http://seata.io/zh-cn/
下载版本 - 1.4.2
注：seata 的0.9 和 1.0 以后的版本很多配置有所变化
seata-server-1.4.2.zip解压到指定目录
修改conf目录下的file.conf配置文件
store 模块的 mode 选择数据库模式，并配置数据库连接信息
store {
## store mode: file、db、redis
mode = "db" #更改部分
## rsa decryption public key
publicKey = ""
## file store property
file {
## store location dir
dir = "sessionStore"
# branch session size , if exceeded first try compress lockkey, still exceeded throws exceptions
maxBranchSessionSize = 16384
# globe session size , if exceeded throws exceptions
maxGlobalSessionSize = 512
# file buffer size , if exceeded allocate new buffer
fileWriteBufferCacheSize = 16384
# when recover batch read size
sessionReloadReadSize = 100
# async, sync
flushDiskMode = async
}
db {
## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp)/HikariDataSource(hikari) etc.
datasource = "druid"
## mysql/oracle/postgresql/h2/oceanbase etc.
dbType = "mysql"
driverClassName = "com.mysql.jdbc.Driver"
url = "jdbc:mysql://127.0.0.1:3306/seata"
user = "sevattal"
password = "Lovemomo"
minConn = 5
maxConn = 100
globalTable = "global_table"
branchTable = "branch_table"
lockTable = "lock_table"
queryLimit = 100
maxWait = 5000
}
注：如果你的mysql是8.0的版本，则数据库的连接驱动需要更改为：com.mysql.cj.jdbc.Driver
修改registry.conf
使用nacos作为注册和配置中心。可以在nacos中创建一个命名空间，把生成的命名空间的值拷过来
registry {
# file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
type = "nacos"
nacos {
application = "seata-server"
serverAddr = "192.168.10.30:1111"
group = "SEATA_GROUP"
namespace = ""
cluster = "default"
username = "nacos"
password = "nacos"
}
eureka {
serviceUrl = "http://localhost:8761/eureka"
application = "default"
weight = "1"
}
redis {
serverAddr = "localhost:6379"
db = 0
password = ""
cluster = "default"
timeout = 0
}
zk {
cluster = "default"
serverAddr = "127.0.0.1:2181"
sessionTimeout = 6000
connectTimeout = 2000
username = ""
password = ""
}
consul {
cluster = "default"
serverAddr = "127.0.0.1:8500"
aclToken = ""
}
etcd3 {
cluster = "default"
serverAddr = "http://localhost:2379"
}
sofa {
serverAddr = "127.0.0.1:9603"
application = "default"
region = "DEFAULT_ZONE"
datacenter = "DefaultDataCenter"
cluster = "default"
group = "SEATA_GROUP"
addressWaitTime = "3000"
}
file {
name = "file.conf"
}
}
config {
# file、nacos 、apollo、zk、consul、etcd3
type = "file"
nacos {
serverAddr = "127.0.0.1:1111"
namespace = ""
group = "SEATA_GROUP"
username = ""
password = ""
dataId = ""
}
consul {
serverAddr = "127.0.0.1:8500"
aclToken = ""
}
seata各个脚本
官方网址：https://github.com/seata/seata/blob/develop/script
注意： 以下sql 都在 seata 库中执行
AT模式下的 undo_log 建表语句
CREATE TABLE `undo_log` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`branch_id` bigint(20) NOT NULL,
`xid` varchar(100) NOT NULL,
`context` varchar(128) NOT NULL,
`rollback_info` longblob NOT NULL,
`log_status` int(11) NOT NULL,
`log_created` datetime NOT NULL,
`log_modified` datetime NOT NULL,
`ext` varchar(100) DEFAULT NULL,
PRIMARY KEY (`id`),
UNIQUE KEY `ux_undo_log` (`xid`,`branch_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;
server 的保存模式为 db 时所需表的建表语句
-- the table to store GlobalSession data
CREATE TABLE IF NOT EXISTS `global_table`
(
`xid` VARCHAR(128) NOT NULL,
`transaction_id` BIGINT,
`status` TINYINT NOT NULL,
`application_id` VARCHAR(32),
`transaction_service_group` VARCHAR(32),
`transaction_name` VARCHAR(128),
`timeout` INT,
`begin_time` BIGINT,
`application_data` VARCHAR(2000),
`gmt_create` DATETIME,
`gmt_modified` DATETIME,
PRIMARY KEY (`xid`),
KEY `idx_gmt_modified_status` (`gmt_modified`, `status`),
KEY `idx_transaction_id` (`transaction_id`)
) ENGINE = InnoDB
DEFAULT CHARSET = utf8;
-- the table to store BranchSession data
CREATE TABLE IF NOT EXISTS `branch_table`
(
`branch_id` BIGINT NOT NULL,
`xid` VARCHAR(128) NOT NULL,
`transaction_id` BIGINT,
`resource_group_id` VARCHAR(32),
`resource_id` VARCHAR(256),
`branch_type` VARCHAR(8),
`status` TINYINT,
`client_id` VARCHAR(64),
`application_data` VARCHAR(2000),
`gmt_create` DATETIME(6),
`gmt_modified` DATETIME(6),
PRIMARY KEY (`branch_id`),
KEY `idx_xid` (`xid`)
) ENGINE = InnoDB
DEFAULT CHARSET = utf8;
-- the table to store lock data
CREATE TABLE IF NOT EXISTS `lock_table`
(
`row_key` VARCHAR(128) NOT NULL,
`xid` VARCHAR(128),
`transaction_id` BIGINT,
`branch_id` BIGINT NOT NULL,
`resource_id` VARCHAR(256),
`table_name` VARCHAR(32),
`pk` VARCHAR(36),
`gmt_create` DATETIME,
`gmt_modified` DATETIME,
PRIMARY KEY (`row_key`),
KEY `idx_branch_id` (`branch_id`)
) ENGINE = InnoDB
DEFAULT CHARSET = utf8;
用于存放各种配置中心的初始化脚本，执行时都会读取 config.txt配置文件，并写入配置中心（下面是nacos的脚本）
#!/usr/bin/env bash
# Copyright 1999-2019 Seata.io Group.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at、
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#
while getopts ":h:p:g:t:u:w:" opt
do
case $opt in
h)
host=$OPTARG
;;
p)
port=$OPTARG
;;
g)
group=$OPTARG
;;
t)
tenant=$OPTARG
;;
u)
username=$OPTARG
;;
w)
password=$OPTARG
;;
?)
echo " USAGE OPTION: $0 [-h host] [-p port] [-g group] [-t tenant] [-u username] [-w password] "
exit 1
;;
esac
done
urlencode() {
for ((i=0; i < ${#1}; i++))
do
char="${1:$i:1}"
case $char in
[a-zA-Z0-9.~_-]) printf $char ;;
*) printf '%%%02X' "'$char" ;;
esac
done
}
#
if [[ -z ${host} ]]; then
host=localhost
fi
if [[ -z ${port} ]]; then
port=8848
fi
if [[ -z ${group} ]]; then
group="SEATA_GROUP"
fi
if [[ -z ${tenant} ]]; then
tenant=""
fi
if [[ -z ${username} ]]; then
username=""
fi
if [[ -z ${password} ]]; then
password=""
fi
nacosAddr=$host:$port
contentType="content-type:application/json;charset=UTF-8"
echo "set nacosAddr=$nacosAddr"
echo "set group=$group"
failCount=0
tempLog=$(mktemp -u)
function addConfig() {
curl -X POST -H "${contentType}" "http://$nacosAddr/nacos/v1/cs/configs?dataId=$(urlencode $1)&group=$group&content=$(urlencode $2)&tenant=$tenant&username=$username&password=$password" >"${tempLog}" 2>/dev/null
if [[ -z $(cat "${tempLog}") ]]; then
echo " Please check the cluster status. "
exit 1
fi
if [[ $(cat "${tempLog}") =~ "true" ]]; then
echo "Set $1=$2 successfully "
else
echo "Set $1=$2 failure "
(( failCount++ ))
fi
}
count=0
for line in $(cat $(dirname "$PWD")/config.txt | sed s/[[:space:]]//g); do
(( count++ ))
key=${line%%=*}
value=${line#*=}
addConfig "${key}" "${value}"
done
echo "========================================================================="
echo " Complete initialization parameters, total-count:$count , failure-count:$failCount "
echo "========================================================================="
if [[ ${failCount} -eq 0 ]]; then
echo " Init nacos config finished, please start seata-server. "
else
echo " init nacos config fail. "
fi
/seata/seata-server-1.4.2/config.txt
以下参数都为官方文档中的参数，这边我只修改了部分信息
transport.type=TCP
transport.server=NIO
transport.heartbeat=true
transport.enableClientBatchSendRequest=true
transport.threadFactory.bossThreadPrefix=NettyBoss
transport.threadFactory.workerThreadPrefix=NettyServerNIOWorker
transport.threadFactory.serverExecutorThreadPrefix=NettyServerBizHandler
transport.threadFactory.shareBossWorker=false
transport.threadFactory.clientSelectorThreadPrefix=NettyClientSelector
transport.threadFactory.clientSelectorThreadSize=1
transport.threadFactory.clientWorkerThreadPrefix=NettyClientWorkerThread
transport.threadFactory.bossThreadSize=1
transport.threadFactory.workerThreadSize=default
transport.shutdown.wait=3
service.vgroupMapping.my_test_tx_group="fsp_tx_group"
service.default.grouplist=127.0.0.1:8091
service.enableDegrade=false
service.disableGlobalTransaction=false
client.rm.asyncCommitBufferLimit=10000
client.rm.lock.retryInterval=10
client.rm.lock.retryTimes=30
client.rm.lock.retryPolicyBranchRollbackOnConflict=true
client.rm.reportRetryCount=5
client.rm.tableMetaCheckEnable=false
client.rm.tableMetaCheckerInterval=60000
client.rm.sqlParserType=druid
client.rm.reportSuccessEnable=false
client.rm.sagaBranchRegisterEnable=false
client.tm.commitRetryCount=5
client.tm.rollbackRetryCount=5
client.tm.defaultGlobalTransactionTimeout=60000
client.tm.degradeCheck=false
client.tm.degradeCheckAllowTimes=10
client.tm.degradeCheckPeriod=2000
store.lock.mode=file
store.session.mode=file
store.file.dir=file_store/data
store.file.maxBranchSessionSize=16384
store.file.maxGlobalSessionSize=512
store.file.fileWriteBufferCacheSize=16384
store.file.flushDiskMode=async
store.file.sessionReloadReadSize=100
store.db.datasource=druid
store.db.dbType=mysql
store.db.driverClassName=com.mysql.jdbc.Driver
store.db.url=jdbc:mysql://127.0.0.1:3306/seata?useUnicode=true&rewriteBatchedStatements=true
store.db.user=sevattal
store.db.password=Lovemomo
store.db.minConn=5
store.db.maxConn=30
store.db.globalTable=global_table
store.db.branchTable=branch_table
store.db.queryLimit=100
store.db.lockTable=lock_table
store.db.maxWait=5000
server.recovery.committingRetryPeriod=1000
server.recovery.asynCommittingRetryPeriod=1000
server.recovery.rollbackingRetryPeriod=1000
server.recovery.timeoutRetryPeriod=1000
server.maxCommitRetryTimeout=-1
server.maxRollbackRetryTimeout=-1
server.rollbackRetryTimeoutUnlockEnable=false
client.undo.dataValidation=true
client.undo.logSerialization=jackson
client.undo.onlyCareUpdateColumns=true
server.undo.logSaveDays=7
server.undo.logDeletePeriod=86400000
client.undo.logTable=undo_log
client.undo.compress.enable=true
client.undo.compress.type=zip
client.undo.compress.threshold=64k
log.exceptionRate=100
transport.serialization=seata
transport.compressor=none
metrics.enabled=false
metrics.registryType=compact
metrics.exporterList=prometheus
metrics.exporterPrometheusPort=9898
配置好之后，启动seata
# nohup sh seata-server.sh -p 8091 -h 127.0.0.1 -m db > seata.log &
-p 指定启动seata server的端口号。
-h 指定seata server所绑定的主机。
-m 事务日志、事务执行信息存储的方式，目前支持file（文件方式）、db（数据库方式，建表语句请查看config/d
启动nacos-config.sh脚本配置注册中心
./nacos-config.sh -h 192.168.10.30 -p 1111
注：
1. 启动该脚本需要先启动nacos、seata
2. 若一个参数报错的话，那么这个就不能成功。
跑完以上脚本后，可以在nacos配置中心中看到以下参数
Seata业务数据库准备
以下演示都需要先启动Nacos后启动Seata,保证两个都OK。
分布式事务业务说明
这里我们会创建三个服务，一个订单服务，一个库存服务，一个账户服务。
当用户下单时,会在订单服务中创建一个订单, 然后通过远程调用库存服务来扣减下单商品的库存，再通过远程调用账户服务来扣减用户账户里面的余额，最后在订单服务中修改订单状态为已完成。
该操作跨越三个数据库，有两次远程调用，很明显会有分布式事务问题。
一言蔽之，下订单—>扣库存—>减账户(余额)。
创建业务数据库
seata_order：存储订单的数据库;
seata_storage：存储库存的数据库;
seata_account：存储账户信息的数据库。
建库SQL
CREATE DATABASE seata_order;
CREATE DATABASE seata_storage;
CREATE DATABASE seata_account;
按照上述3库分别建对应业务表
seata_order库下建t_order表
CREATE TABLE t_order (
`id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY,
`user_id` BIGINT(11) DEFAULT NULL COMMENT '用户id',
`product_id` BIGINT(11) DEFAULT NULL COMMENT '产品id',
`count` INT(11) DEFAULT NULL COMMENT '数量',
`money` DECIMAL(11,0) DEFAULT NULL COMMENT '金额',
`status` INT(1) DEFAULT NULL COMMENT '订单状态: 0:创建中; 1:已完结'
) ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;
SELECT * FROM t_order;
seata_storage库下建t_storage表
CREATE TABLE t_storage (
`id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY,
`product_id` BIGINT(11) DEFAULT NULL COMMENT '产品id',
`total` INT(11) DEFAULT NULL COMMENT '总库存',
`used` INT(11) DEFAULT NULL COMMENT '已用库存',
`residue` INT(11) DEFAULT NULL COMMENT '剩余库存'
) ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;
INSERT INTO seata_storage.t_storage(`id`, `product_id`, `total`, `used`, `residue`)
VALUES ('1', '1', '100', '0','100');
SELECT * FROM t_storage;
seata_account库下建t_account表
CREATE TABLE t_account(
`id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY COMMENT 'id',
`user_id` BIGINT(11) DEFAULT NULL COMMENT '用户id',
`total` DECIMAL(10,0) DEFAULT NULL COMMENT '总额度',
`used` DECIMAL(10,0) DEFAULT NULL COMMENT '已用余额',
`residue` DECIMAL(10,0) DEFAULT '0' COMMENT '剩余可用额度'
) ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;
INSERT INTO seata_account.t_account(`id`, `user_id`, `total`, `used`, `residue`)
VALUES ('1', '1', '1000', '0', '1000');
SELECT * FROM t_account;
按照上述3库分别建对应的回滚日志表
订单-库存-账户3个库下都需要建各自的回滚日志表
\seata-server-0.9.0\seata\conf目录下的db_ undo_ log.sql
建表SQL
-- the table to store seata xid data
-- 0.7.0+ add context
-- you must to init this sql for you business databese. the seata server not need it.
-- 此脚本必须初始化在你当前的业务数据库中，用于AT 模式XID记录。与server端无关（注：业务数据库）
-- 注意此处0.3.0+ 增加唯一索引 ux_undo_log
drop table `undo_log`;
CREATE TABLE `undo_log` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`branch_id` bigint(20) NOT NULL,
`xid` varchar(100) NOT NULL,
`context` varchar(128) NOT NULL,
`rollback_info` longblob NOT NULL,
`log_status` int(11) NOT NULL,
`log_created` datetime NOT NULL,
`log_modified` datetime NOT NULL,
`ext` varchar(100) DEFAULT NULL,
PRIMARY KEY (`id`),
UNIQUE KEY `ux_undo_log` (`xid`,`branch_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;
Seata之Order-Module配置搭建
下订单 -> 减库存 -> 扣余额 -> 改（订单）状态
1. 新建 seata-order-service2001 模块
2. seata-order-service2001 项目 pom.xml文件
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<artifactId>springcloud2021</artifactId>
<groupId>com.sevattal.springcloud</groupId>
<version>1.0-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>seata-order-service2001</artifactId>
<dependencies>
<!--nacos-->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>
<!--seata-->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-seata</artifactId>
<exclusions>
<exclusion>
<artifactId>seata-all</artifactId>
<groupId>io.seata</groupId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>io.seata</groupId>
<artifactId>seata-all</artifactId>
<version>1.4.2</version>
</dependency>
<!--feign-->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
<!--web-actuator-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
<!--mysql-druid-->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.37</version>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid-spring-boot-starter</artifactId>
<version>1.1.10</version>
</dependency>
<dependency>
<groupId>org.mybatis.spring.boot</groupId>
<artifactId>mybatis-spring-boot-starter</artifactId>
<version>2.0.0</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
</dependencies>
</project>
3. seata-order-service2001 项目 application.yml 文件
server:
port: 2001
spring:
application:
name: seata-order-service
cloud:
alibaba:
seata:
#自定义事务组名称需要与seata-server中的对应
tx-service-group: fsp_tx_group
nacos:
discovery:
server-addr: 192.168.10.30:1111
datasource:
driver-class-name: com.mysql.jdbc.Driver
url: jdbc:mysql://192.168.10.30:3306/seata_order
username: sevattal
password: Lovemomo
feign:
hystrix:
enabled: false
logging:
level:
io:
seata: info
mybatis:
mapperLocations: classpath:mapper/*.xml
domain
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult<T>
{
private Integer code;
private String message;
private T data;
public CommonResult(Integer code, String message)
{
this(code,message,null);
}
}
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import java.math.BigDecimal;
@Data
@AllArgsConstructor
@NoArgsConstructor
public class Order
{
private Long id;
private Long userId;
private Long productId;
private Integer count;
private BigDecimal money;
private Integer status; //订单状态：0：创建中；1：已完结
}
file.conf 文件 即 register.conf 文件 从 seata服务器上copy过来，更改正确的seata、nacos、mysql地址
file.conf
## transaction log store, only used in seata-server
store {
## store mode: file、db、redis
mode = "db"
## rsa decryption public key
publicKey = ""
## file store property
file {
## store location dir
dir = "sessionStore"
# branch session size , if exceeded first try compress lockkey, still exceeded throws exceptions
maxBranchSessionSize = 16384
# globe session size , if exceeded throws exceptions
maxGlobalSessionSize = 512
# file buffer size , if exceeded allocate new buffer
fileWriteBufferCacheSize = 16384
# when recover batch read size
sessionReloadReadSize = 100
# async, sync
flushDiskMode = async
}
## database store property
db {
## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp)/HikariDataSource(hikari) etc.
datasource = "druid"
## mysql/oracle/postgresql/h2/oceanbase etc.
dbType = "mysql"
driverClassName = "com.mysql.jdbc.Driver"
## if using mysql to store the data, recommend add rewriteBatchedStatements=true in jdbc connection param
url = "jdbc:mysql://192.168.10.30:3306/seata?rewriteBatchedStatements=true"
user = "sevattal"
password = "Lovemomo"
minConn = 5
maxConn = 100
globalTable = "global_table"
branchTable = "branch_table"
lockTable = "lock_table"
queryLimit = 100
maxWait = 5000
}
## redis store property
redis {
## redis mode: single、sentinel
mode = "single"
## single mode property
single {
host = "127.0.0.1"
port = "6379"
}
## sentinel mode property
sentinel {
masterName = ""
## such as "10.28.235.65:26379,10.28.235.65:26380,10.28.235.65:26381"
sentinelHosts = ""
}
password = ""
database = "0"
minConn = 1
maxConn = 10
maxTotal = 100
queryLimit = 100
}
}
registry.conf
registry {
# file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
type = "nacos"
nacos {
application = "seata-server"
serverAddr = "192.168.10.30:1111"
group = "SEATA_GROUP"
namespace = ""
cluster = "default"
username = "nacos"
password = "nacos"
}
eureka {
serviceUrl = "http://localhost:8761/eureka"
application = "default"
weight = "1"
}
redis {
serverAddr = "localhost:6379"
db = 0
password = ""
cluster = "default"
timeout = 0
}
zk {
cluster = "default"
serverAddr = "127.0.0.1:2181"
sessionTimeout = 6000
connectTimeout = 2000
username = ""
password = ""
}
consul {
cluster = "default"
serverAddr = "127.0.0.1:8500"
aclToken = ""
}
etcd3 {
cluster = "default"
serverAddr = "http://localhost:2379"
}
sofa {
serverAddr = "127.0.0.1:9603"
application = "default"
region = "DEFAULT_ZONE"
datacenter = "DefaultDataCenter"
cluster = "default"
group = "SEATA_GROUP"
addressWaitTime = "3000"
}
file {
name = "file.conf"
}
}
config {
# file、nacos 、apollo、zk、consul、etcd3
type = "file"
nacos {
serverAddr = "192.168.10.30:1111"
namespace = ""
group = "SEATA_GROUP"
username = ""
password = ""
dataId = "seataServer.properties"
}
consul {
serverAddr = "127.0.0.1:8500"
aclToken = ""
}
apollo {
appId = "seata-server"
## apolloConfigService will cover apolloMeta
apolloMeta = "http://192.168.1.204:8801"
apolloConfigService = "http://192.168.1.204:8080"
namespace = "application"
apolloAccesskeySecret = ""
cluster = "seata"
}
zk {
serverAddr = "127.0.0.1:2181"
sessionTimeout = 6000
connectTimeout = 2000
username = ""
password = ""
nodePath = "/seata/seata.properties"
}
etcd3 {
serverAddr = "http://localhost:2379"
}
file {
name = "file.conf"
}
}
Seata之Order-Module撸码(上)
Dao接口及实现
import com.sevattal.springcloud.alibaba.domain.Order;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;
@Mapper
public interface OrderDao
{
//1 新建订单
void create(Order order);
//2 修改订单状态，从零改为1
void update(@Param("userId") Long userId,@Param("status") Integer status);
}
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.sevattal.springcloud.alibaba.dao.OrderDao">
<resultMap id="BaseResultMap" type="com.sevattal.springcloud.alibaba.domain.Order">
<id column="id" property="id" jdbcType="BIGINT"/>
<result column="user_id" property="userId" jdbcType="BIGINT"/>
<result column="product_id" property="productId" jdbcType="BIGINT"/>
<result column="count" property="count" jdbcType="INTEGER"/>
<result column="money" property="money" jdbcType="DECIMAL"/>
<result column="status" property="status" jdbcType="INTEGER"/>
</resultMap>
<insert id="create">
insert into t_order (id,user_id,product_id,count,money,status)
values (null,#{userId},#{productId},#{count},#{money},0);
</insert>
<update id="update">
update t_order set status = 1
where user_id=#{userId} and status = #{status};
</update>
</mapper>
Service接口及实现
OrderService
OrderServiceImpl
StorageService
AccountService
import com.sevattal.springcloud.alibaba.domain.Order;
public interface OrderService
{
void create(Order order);
}
import com.sevattal.springcloud.alibaba.domain.CommonResult;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;
import java.math.BigDecimal;
@FeignClient(value = "seata-storage-service")
public interface StorageService
{
@PostMapping(value = "/storage/decrease")
CommonResult decrease(@RequestParam("productId") Long productId, @RequestParam("count") Integer count);
}
import com.sevattal.springcloud.alibaba.domain.CommonResult;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;
import java.math.BigDecimal;
@FeignClient(value = "seata-account-service")
public interface AccountService
{
@PostMapping(value = "/account/decrease")
CommonResult decrease(@RequestParam("userId") Long userId, @RequestParam("money") BigDecimal money);
}
import com.sevattal.springcloud.alibaba.dao.OrderDao;
import com.sevattal.springcloud.alibaba.domain.Order;
import com.sevattal.springcloud.alibaba.service.AccountService;
import com.sevattal.springcloud.alibaba.service.OrderService;
import com.sevattal.springcloud.alibaba.service.StorageService;
import io.seata.spring.annotation.GlobalTransactional;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;
import javax.annotation.Resource;
@Service
@Slf4j
public class OrderServiceImpl implements OrderService
{
@Resource
private OrderDao orderDao;
@Resource
private StorageService storageService;
@Resource
private AccountService accountService;
/**
* 创建订单->调用库存服务扣减库存->调用账户服务扣减账户余额->修改订单状态
* 简单说：下订单->扣库存->减余额->改状态
*/
@Override
//@GlobalTransactional(name = "fsp-create-order",rollbackFor = Exception.class)
public void create(Order order)
{
log.info("----->开始新建订单");
//1 新建订单
orderDao.create(order);
//2 扣减库存
log.info("----->订单微服务开始调用库存，做扣减Count");
storageService.decrease(order.getProductId(),order.getCount());
log.info("----->订单微服务开始调用库存，做扣减end");
//3 扣减账户
log.info("----->订单微服务开始调用账户，做扣减Money");
accountService.decrease(order.getUserId(),order.getMoney());
log.info("----->订单微服务开始调用账户，做扣减end");
//4 修改订单状态，从零到1,1代表已经完成
log.info("----->修改订单状态开始");
orderDao.update(order.getUserId(),0);
log.info("----->修改订单状态结束");
log.info("----->下订单结束了，O(∩_∩)O哈哈~");
}
}
Seata之Order-Module撸码(下)
Controller
import com.sevattal.springcloud.alibaba.domain.CommonResult;
import com.sevattal.springcloud.alibaba.domain.Order;
import com.sevattal.springcloud.alibaba.service.OrderService;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
import javax.annotation.Resource;
@RestController
public class OrderController
{
@Resource
private OrderService orderService;
@GetMapping("/order/create")
public CommonResult create(Order order)
{
orderService.create(order);
return new CommonResult(200,"订单创建成功");
}
}
Config配置
MyBatisConfig
DataSourceProxyConfig
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.context.annotation.Configuration;
@Configuration
@MapperScan({"com.sevattal.springcloud.alibaba.dao"})
public class MyBatisConfig {
}
import com.alibaba.druid.pool.DruidDataSource;
import io.seata.rm.datasource.DataSourceProxy;
import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.transaction.SpringManagedTransactionFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;
import javax.sql.DataSource;
/**
* 使用Seata对数据源进行代理
*/
@Configuration
public class DataSourceProxyConfig {
@Value("${mybatis.mapperLocations}")
private String mapperLocations;
@Bean
@ConfigurationProperties(prefix = "spring.datasource")
public DataSource druidDataSource(){
return new DruidDataSource();
}
@Bean
public DataSourceProxy dataSourceProxy(DataSource dataSource) {
return new DataSourceProxy(dataSource);
}
@Bean
public SqlSessionFactory sqlSessionFactoryBean(DataSourceProxy dataSourceProxy) throws Exception {
SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
sqlSessionFactoryBean.setDataSource(dataSourceProxy);
sqlSessionFactoryBean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources(mapperLocations));
sqlSessionFactoryBean.setTransactionFactory(new SpringManagedTransactionFactory());
return sqlSessionFactoryBean.getObject();
}
}
主启动
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.autoconfigure.jdbc.DataSourceAutoConfiguration;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.openfeign.EnableFeignClients;
@EnableDiscoveryClient
@EnableFeignClients
//取消数据源的自动创建，而是使用自己定义的
@SpringBootApplication(exclude = DataSourceAutoConfiguration.class)
public class SeataOrderMainApp2001
{
public static void main(String[] args)
{
SpringApplication.run(SeataOrderMainApp2001.class, args);
}
}
Seata之Storage-Module说明
与seata-order-service2001模块大致相同
seata- storage - service2002
POM（与seata-order-service2001模块大致相同）
YML
server:
port: 2002
spring:
application:
name: seata-storage-service
cloud:
alibaba:
seata:
tx-service-group: fsp_tx_group
nacos:
discovery:
server-addr: localhost:8848
datasource:
driver-class-name: com.mysql.jdbc.Driver
url: jdbc:mysql://localhost:3306/seata_storage
username: sevattal
password: Lovemomo
logging:
level:
io:
seata: info
mybatis:
mapperLocations: classpath:mapper/*.xml
file.conf（与seata-order-service2001模块大致相同）
registry.conf（与seata-order-service2001模块大致相同）
domain
import lombok.Data;
@Data
public class Storage {
private Long id;
/**
* 产品id
*/
private Long productId;
/**
* 总库存
*/
private Integer total;
/**
* 已用库存
*/
private Integer used;
/**
* 剩余库存
*/
private Integer residue;
}
CommonResult（与seata-order-service2001模块大致相同）
Dao接口及实现
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;
@Mapper
public interface StorageDao {
//扣减库存
void decrease(@Param("productId") Long productId, @Param("count") Integer count);
}
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.sevattal.springcloud.alibaba.dao.StorageDao">
<resultMap id="BaseResultMap" type="com.sevattal.springcloud.alibaba.domain.Storage">
<id column="id" property="id" jdbcType="BIGINT"/>
<result column="product_id" property="productId" jdbcType="BIGINT"/>
<result column="total" property="total" jdbcType="INTEGER"/>
<result column="used" property="used" jdbcType="INTEGER"/>
<result column="residue" property="residue" jdbcType="INTEGER"/>
</resultMap>
<update id="decrease">
UPDATE
t_storage
SET
used = used + #{count},residue = residue - #{count}
WHERE
product_id = #{productId}
</update>
</mapper>
Service接口及实现
public interface StorageService {
/**
* 扣减库存
*/
void decrease(Long productId, Integer count);
}
import com.sevattal.springcloud.alibaba.dao.StorageDao;
import com.sevattal.springcloud.alibaba.service.StorageService ;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import javax.annotation.Resource;
@Service
public class StorageServiceImpl implements StorageService {
private static final Logger LOGGER = LoggerFactory.getLogger(StorageServiceImpl.class);
@Resource
private StorageDao storageDao;
/**
* 扣减库存
*/
@Override
public void decrease(Long productId, Integer count) {
LOGGER.info("------->storage-service中扣减库存开始");
storageDao.decrease(productId,count);
LOGGER.info("------->storage-service中扣减库存结束");
}
}
Controller
import com.sevattal.springcloud.alibaba.domain.CommonResult ;
import com.sevattal.springcloud.alibaba.service.StorageService ;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
@RestController
public class StorageController {
@Autowired
private StorageService storageService;
/**
* 扣减库存
*/
@RequestMapping("/storage/decrease")
public CommonResult decrease(Long productId, Integer count) {
storageService.decrease(productId, count);
return new CommonResult(200,"扣减库存成功！");
}
}
Config配置（与seata-order-service2001模块大致相同）
主启动（与seata-order-service2001模块大致相同）
Seata之Account-Module说明
与seata-order-service2001模块大致相同
seata- account- service2003
POM（与seata-order-service2001模块大致相同）
YML
server:
port: 2003
spring:
application:
name: seata-account-service
cloud:
alibaba:
seata:
tx-service-group: fsp_tx_group
nacos:
discovery:
server-addr: localhost:8848
datasource:
driver-class-name: com.mysql.jdbc.Driver
url: jdbc:mysql://localhost:3306/seata_account
username: sevattal
password: Lovemomo
feign:
hystrix:
enabled: false
logging:
level:
io:
seata: info
mybatis:
mapperLocations: classpath:mapper/*.xml
file.conf（与seata-order-service2001模块大致相同）
registry.conf（与seata-order-service2001模块大致相同）
domain
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import java.math.BigDecimal;
@Data
@AllArgsConstructor
@NoArgsConstructor
public class Account {
private Long id;
/**
* 用户id
*/
private Long userId;
/**
* 总额度
*/
private BigDecimal total;
/**
* 已用额度
*/
private BigDecimal used;
/**
* 剩余额度
*/
private BigDecimal residue;
}
CommonResult（与seata-order-service2001模块大致相同）
Dao接口及实现
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;
import org.springframework.stereotype.Component;
import org.springframework.stereotype.Repository;
import java.math.BigDecimal;
@Mapper
public interface AccountDao {
/**
* 扣减账户余额
*/
void decrease(@Param("userId") Long userId, @Param("money") BigDecimal money);
}
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.sevattal.springcloud.alibaba.dao.AccountDao">
<resultMap id="BaseResultMap" type="com.sevattal.springcloud.alibaba.domain.Account">
<id column="id" property="id" jdbcType="BIGINT"/>
<result column="user_id" property="userId" jdbcType="BIGINT"/>
<result column="total" property="total" jdbcType="DECIMAL"/>
<result column="used" property="used" jdbcType="DECIMAL"/>
<result column="residue" property="residue" jdbcType="DECIMAL"/>
</resultMap>
<update id="decrease">
UPDATE t_account
SET
residue = residue - #{money},used = used + #{money}
WHERE
user_id = #{userId};
</update>
</mapper>
Service接口及实现
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.ResponseBody;
import java.math.BigDecimal;
public interface AccountService {
/**
* 扣减账户余额
* @param userId 用户id
* @param money 金额
*/
void decrease(@RequestParam("userId") Long userId, @RequestParam("money") BigDecimal money);
}
import com.sevattal.springcloud.alibaba.dao.AccountDao;
import com.sevattal.springcloud.alibaba.service.AccountService ;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import javax.annotation.Resource;
import java.math.BigDecimal;
import java.util.concurrent.TimeUnit;
/**
*/
@Service
public class AccountServiceImpl implements AccountService {
private static final Logger LOGGER = LoggerFactory.getLogger(AccountServiceImpl.class);
@Resource
AccountDao accountDao;
/**
* 扣减账户余额
*/
@Override
public void decrease(Long userId, BigDecimal money) {
LOGGER.info("------->account-service中扣减账户余额开始");
accountDao.decrease(userId,money);
LOGGER.info("------->account-service中扣减账户余额结束");
}
}
Controller
import com.sevattal.springcloud.alibaba.domain.CommonResult ;
import com.sevattal.springcloud.alibaba.service.AccountService ;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
import javax.annotation.Resource;
import java.math.BigDecimal;
@RestController
public class AccountController {
@Resource
AccountService accountService;
/**
* 扣减账户余额
*/
@RequestMapping("/account/decrease")
public CommonResult decrease(@RequestParam("userId") Long userId, @RequestParam("money") BigDecimal money){
accountService.decrease(userId,money);
return new CommonResult(200,"扣减账户余额成功！");
}
}
Config配置（与seata-order-service2001模块大致相同）
主启动（与seata-order-service2001模块大致相同）
Seata之@GlobalTransactional验证
下订单 -> 减库存 -> 扣余额 -> 改（订单）状态
数据库初始情况：
正常下单 - http://localhost:2001/order/create?userId=1&productId=1&count=10&money=100
数据库正常下单后状况：
超时异常，没加@GlobalTransactional
模拟AccountServiceImpl添加超时
@Service
public class AccountServiceImpl implements AccountService {
private static final Logger LOGGER = LoggerFactory.getLogger(AccountServiceImpl.class);
@Resource
AccountDao accountDao;
/**
* 扣减账户余额
*/
@Override
public void decrease(Long userId, BigDecimal money) {
LOGGER.info("------->account-service中扣减账户余额开始");
//模拟超时异常，全局事务回滚
//暂停几秒钟线程
try { TimeUnit.SECONDS.sleep(20); } catch (InterruptedException e) { e.printStackTrace(); }
accountDao.decrease(userId,money);
LOGGER.info("------->account-service中扣减账户余额结束");
}
}
另外，OpenFeign的调用默认时间是1s以内，所以最后会抛异常。
数据库情况
故障情况
当库存和账户金额扣减后，订单状态并没有设置为已经完成，没有从零改为1
而且由于feign的重试机制，账户余额还有可能被多次扣减
超时异常，加了@GlobalTransactional
用@GlobalTransactional标注OrderServiceImpl的create()方法。
@Service
@Slf4j
public class OrderServiceImpl implements OrderService {
...
/**
* 创建订单->调用库存服务扣减库存->调用账户服务扣减账户余额->修改订单状态
* 简单说：下订单->扣库存->减余额->改状态
*/
@Override
//rollbackFor = Exception.class表示对任意异常都进行回滚
@GlobalTransactional(name = "fsp-create-order",rollbackFor = Exception.class)
public void create(Order order)
{
...
}
}
还是模拟AccountServiceImpl添加超时，下单后数据库数据并没有任何改变，记录都添加不进来，达到出异常，数据库回滚的效果。
Seata之原理简介
2019年1月份蚂蚁金服和阿里巴巴共同开源的分布式事务解决方案。
Simple Extensible Autonomous Transaction Architecture，简单可扩展自治事务框架。
2020起始，用1.0以后的版本。Alina Gingertail
分布式事务的执行流程
TM开启分布式事务(TM向TC注册全局事务记录) ;
按业务场景，编排数据库、服务等事务内资源(RM向TC汇报资源准备状态) ;
TM结束分布式事务，事务一阶段结束(TM通知TC提交/回滚分布式事务) ;
TC汇总事务信息，决定分布式事务是提交还是回滚；
TC通知所有RM提交/回滚资源，事务二阶段结束。
AT模式如何做到对业务的无侵入
是什么
前提
基于支持本地 ACID 事务的关系型数据库。
Java 应用，通过 JDBC 访问数据库。
整体机制
两阶段提交协议的演变：
一阶段：业务数据和回滚日志记录在同一个本地事务中提交，释放本地锁和连接资源。
二阶段：
提交异步化，非常快速地完成。
回滚通过一阶段的回滚日志进行反向补偿。
一阶段加载
在一阶段，Seata会拦截“业务SQL”
1. 解析SQL语义，找到“业务SQL" 要更新的业务数据，在业务数据被更新前，将其保存成"before image”
2. 执行“业务SQL" 更新业务数据，在业务数据更新之后,
3. 其保存成"after image”，最后生成行锁。
以上操作全部在一个数据库事务内完成, 这样保证了一阶段操作的原子性。
二阶段提交
二阶段如果顺利提交的话，因为”业务SQL”在一阶段已经提交至数据库，所以Seata框架只需将一阶段保存的快照数据和行锁删掉，完成数据清理即可。
二阶段回滚
二阶段如果是回滚的话，Seata 就需要回滚一阶段已经执行的 “业务SQL”，还原业务数据。
回滚方式便是用”before image”还原业务数据；但在还原前要首先要校验脏写，对比“数据库当前业务数据”和”after image”。
如果两份数据完全一致就说明没有脏写， 可以还原业务数据，如果不一致就说明有脏写, 出现脏写就需要转人工处理。
补充
